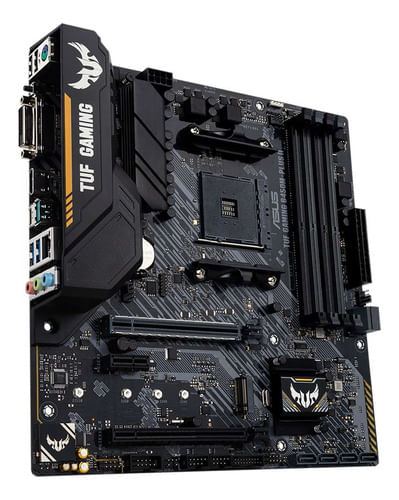

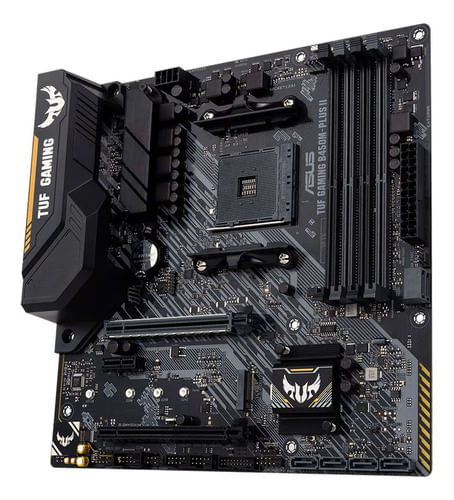

Motherboard Asus Tuf Gaming B450m Plus 2 Am4 M.2 Micro Atx

Motherboard ASUS AMD B450 (AM4) micro ATX con soporte M.2, micrófono con cancelación de ruido IA, HDMI, DVI-D, USB 3.2 Gen 2 Tipo A, USB 3.2 Gen 1 Tipo A y Tipo C, e iluminación Aura Sync RGB - 90MB1620-M0EAY0

- Refrigeración completa: Disipadores VRM, disipador PCH y Fan Xpert 2+.
- Conectividad Next-gen: Compatibilidad con USB 3.2 Gen 2 Type-A.
- Códec Realtek S1200A: Calidad de audio impecable con una relación señal-ruido sin precedentes de 108 dB para salida de línea estéreo y SNR de 103 dB para entrada de línea.
- Micrófono con cancelación de ruido AI: Proporciona una comunicación de voz nítida en el juego.
- Iluminación Aura Sync RGB: Sincronice la iluminación LED con una amplia variedad de equipos de PC compatibles.

Especificaciones
Model
TUF GAMING B450M-PLUS II

CPU
AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics Processors

Chipset
AMD B450

Memoria
4 x DIMM, Max. 128GB, DDR4 4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3533(O.C)/3466(O.C.)/3400(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Un-buffered Memory *,3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Gráficos
1 x HDMI 2.0b,*Graphics specifications may vary between CPU types.,Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors

Soporte Multi GPU
Supports AMD 2-Way CrossFireX Technology

Athlon™ with Radeon™ Vega Graphics Processors,3rd/2nd/1st Gen AMD Ryzen™ Processors,1 x PCIe 2.0 x16 (x4 mode),AMD B450 chipset,1 x PCIe 2.0 x1,1 x PCIe 3.0/2.0 x16 (x16 mode),1 x PCIe 3.0/2.0 x16 (max at x4 mode),1 x PCIe 3.0/2.0 x16 (x8 mode)

1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support*1,1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA mode)*1,Total supports 1 x M.2 slot(s) and 6 x SATA 6Gb/s ports,Athlon™ with Radeon™ Vega Graphics Processors : ,3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics : ,3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors : ,2 x SATA 6Gb/s port(s),,AMD B450 chipset : ,4 x SATA 6Gb/s port(s),,Support Raid 0, 1, 10

LAN
Realtek RTL8111H 1Gb Ethernet,TUF LANGuard

Audio
Realtek ALC8877.1 Surround Sound High Definition Audio CODEC,- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback,- Audio Shielding,- Dedicated audio PCB layers,- Audio Cover,- Premium Japanese audio capacitors,Audio Feature :,- Exclusive DTS Custom for GAMING Headsets.

Puertos USB
3 x USB 3.2 Gen 1 port(s)(2 x Type-A +1 x Type-C),1 x USB 3.2 Gen 2 port(s)(1 x Type-A),4 x USB 2.0 port(s)(4 x Type-A),Front USB Port ( Total 6 ),Rear USB Port ( Total 6 ),2 x USB 3.2 Gen 1 port(s)(2 x Type-A),2 x USB 2.0 port(s)(2 x Type-A)

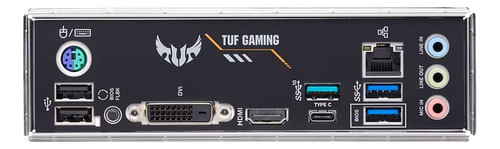

Puertos I/O Traseros
1 x USB 3.2 Gen 1 (black) Type-C,1 x USB 3.2 Gen 2 (teal blue)Type-A,,1 x BIOS FlashBack™ Button(s),2 x USB 3.2 Gen 1 (blue) Type-A,1 x DVI-D,2 x USB 2.0,3 x Audio jack(s),1 x PS/2 keyboard/mouse combo port(s),1 x HDMI,1 x LAN (RJ45) port(s)

Internal I/O
1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s),1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode),1 x Aura RGB Strip Header,6 x SATA 6Gb/s connector(s),1 x 8-pin EATX 12V Power connectors,2 x Chassis Fan connector(s),1 x System panel connector,1 x Speaker connector,1 x CPU Fan connector(s),2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s),1 x SPI TPM header,1 x S/PDIF out header(s),1 x 24-pin EATX Power connector(s),1 x Front panel audio connector(s) (AAFP),1 x Clear CMOS jumper(s),1 x COM port header

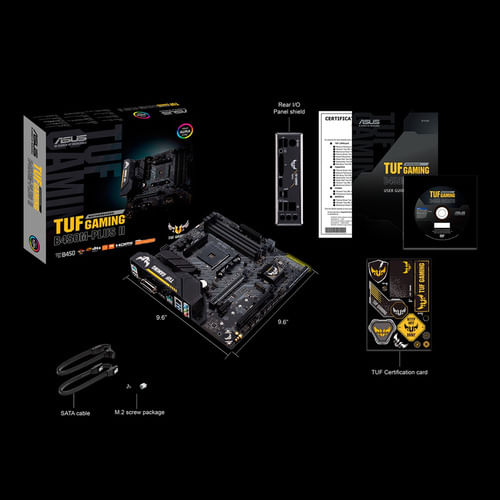

Accessorios
1 x M.2 SSD screw package(s),User´s manual,I/O Shield,2 x SATA 6Gb/s cable(s),1 x Supporting DVD,1 x TUF GAMING Sticker,1 x TUF Certification card(s)

BIOS
256 Mb Flash ROM, UEFI AMI BIOS

Factor de forma
mATX Form Factor,9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm )
